Frames and vibrational coordinates

Here we introduce different ingredients available for triatomic molecules, including

Molecular frames $xyz$ ;
$3N-6$ ( $3N-5$ ) vibrational coordinates $\xi_n$ ;

For the linearised coordinates, the default frame is Eckart. The equilibrium structures, required for the definition of the linearised KEO and PEF, are chosen as the principal axis system (PAS). For the curvilinear KEOs, the frames are defined by the construction of the KEOs in their analytic representations.

Triatomics

XY₂ type molecules

A molecule type is defined by the keyword MolType. For the XY₂ example it is

MolType XY2

in the curvilinear KEO, it is common in TROVE to use the bisector frame for the XY₂ molecules, with the $x$ axis bisecting the bond angle and the $z$ in the plane of the molecule, but other embeddings are possible. The PAS frame coincides with the bisector frame at the equilibrium or non-rigid reference configuration (i.e. symmetric). In TROVE, the definition of the frame is combined with the definition of the internal coordinates via the keywords transform or frame. In the following, these are described.

For quasi-linear triatomic molecules, it is also possible to use exact curvilinear KEO in implemented analytically, see below.

`R-RHO-Z`

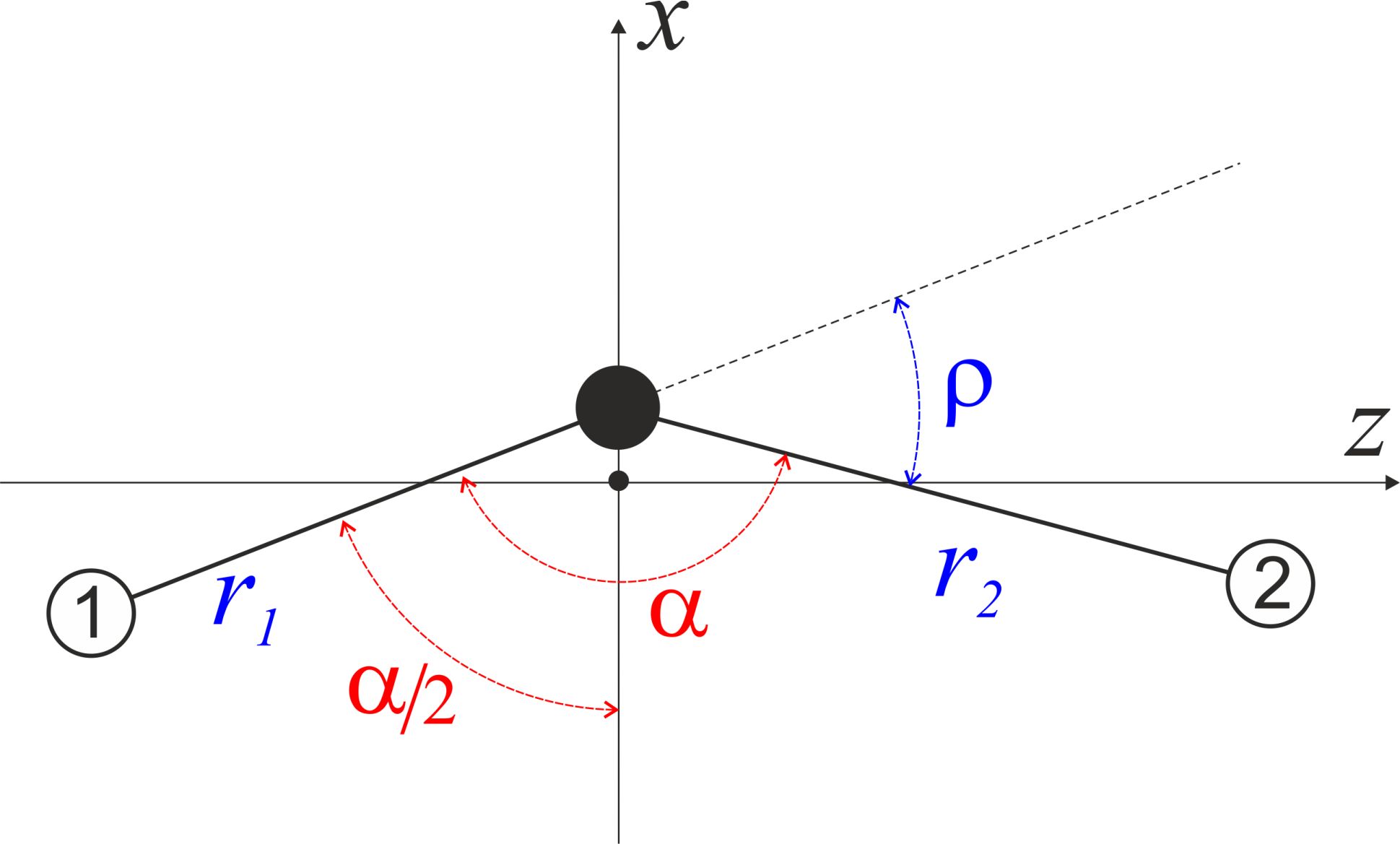

R-RHO-Z is used for (quasi-)linear molecules of the XY₂ type. it defined the curvilinear vibrational coordinates as the two bond angles $r_1$ and $r_2$ with the bending mode described by the angle $\rho = \pi - \alpha$ , where $\alpha$ is the interbond angle ( $\rho = 0 \ldots \rho_{\rm max}$ ). The exact orientation of the frame relative to the instantaneous position of the nuclei is critical for representing the dipole moment vectors.

For the rigid reference frame (REFER-CONF RIGID), the actual internal coordinates are the displacements of $r_1$ , $r_2$ and $\rho$ from the corresponding equilibrium:

$\begin{split} \xi_1 &= r_1 - r_{\rm e}, \\ \xi_2 &= r_2 - r_{\rm e}, \\ \xi_3 &= \rho, \end{split}$

where $r_{\rm e}$ is the equilibrium bond length. If the non-rigid reference frame is used (REFER-CONF NON-RIGID), the bending mode is given on an equidistant grid, typically of 1000-2000 points, while the stretching modes are the displacements from the given $\rho$ point along the non-rigid reference frame, the latter is usually defined as the principal axes system with the bond length fixed to the equilibrium:

$\begin{split} \xi_1 &= r_1 - r_{\rm ref}, \\ \xi_2 &= r_2 - r_{\rm ref}, \\ \xi_3 &= \rho, \end{split}$

TROVE uses Z-matrix coordinates to build any user-defined coordinates. In this case, the Z=matrix is given by

ZMAT
    S   0  0  0  0  31.97207070
    H   1  0  0  0   1.00782505
    H   1  2  0  0   1.00782505
end

Alternatively, the reference value of the bond length $r_{\rm ref}$ can also vary with $\rho$ as e.g. in the minimum energy path (MEP) definition with $r_{\rm ref}$ being the optimised value at the given value of $\rho$ corresponding to the local energy minimum. In this case, the non-rigid frame must be defined using the MEP block (see the corresponding section).

For the linearised coordinates type (COORDS Linear), the actual internal coordinates are the linearised versions of $\xi_i$ above. More specifically, for the non-rigid reference configuration, the bending coordinate :math`rho` is kept curvilinear on a grid of :math`rho_k` points as before, while the stretching coordinates are defined by linearly expanding :math`r_1` and :math`r_2` in terms of the Cartesian displacement around the corresponding reference values $r_{\rm ref}$ . In the Rigid case, the bending coordinate is also linearised.

The advantage of the linearised coordinates is that the corresponding KEO can be constructed on the fly as part of the TROVE generalised procedure as a Taylor type expansion. The main disadvantage however is that the approximate linearised KEO operator is less accurate than the (exact) curvilinear EKO. Besides, the convergence of the variational solution is also poorer for the linearised case (see [15YaYu]).

`R-RHO-Z-ECKART`

This Transform (frame) type is very similar to R-RHO-Z, but with the molecular frame define using the Eckart conditions.

`R-ALPHA-Z`

R-ALPHA-Z is very similar to R-RHO-Z with the difference in the bending coordinate, which in the interbond angle $\alpha$ in this case. In the Rigid reference configuration, it is a displacement from the equilibrium value $\alpha_{\rm e}$ :

$\begin{split} \xi_1 &= r_1 - r_{\rm e}, \\ \xi_2 &= r_2 - r_{\rm e},\\ \xi_3 &= \alpha-\alpha_{\rm e}. \end{split}$

In the Non-rigid reference configuration, $\alpha$ is given on a grid of points ranging from $\alpha_{\rm min}$ to $\alpha_{\rm max}$ and including the equilibrium value. In the linearised Rigid case, the bending coordinated is defined as a linear expansion of $\alpha$ at $\alpha_{\rm eq}$ in terms of the Cartesian displacements.

TROVE input example:

COORDS       local    (curvilinear coordinates)
frame    r-rho-z  (r1, r2, rho with the x parallel to the bisector)
MOLTYPE      XY2
REFER-CONF   non-RIGID  (Reference configuration)

Note

The text in brackets is used for comments.

R-RHO-Z-M2-M3

A ‘bisecting’ XY₂ frame used for isotopologies with slightly different masses of Y₁ and Y₂, for example O¹⁶CO¹⁷. Although this is an XYZ molecule, in this case it is formally treated as XY₂ but with non-symmetric masses and the Cs symmetry, e.g.:

frame    R-RHO-Z-M2-M3
MOLTYPE      XY2
MOLECULE     CO2
REFER-CONF   non-RIGID

SYMGROUP Cs(M)

ZMAT
    C   0  0  0  0   11.996709
    O   1  0  0  0   16.995245
    O   1  2  0  0   15.9905256
end

XYZ type molecules

The main embedding here is the ‘bond’-embedding, with the $z$ axis placed parallel to the bond Y-Z with a heavier atom Z comparing to X (second bond). For molecules XYZ with comparable masses X and Z (e.g. in similar isotopologues), the bisector frames and associated frame can be used.

`R1-Z-R2-RHO`

This is a ‘bond’-embedding with the same vibrational coordinates as in R-RHO-Z and $r_1$ along the $z$ axis and $r_2$ in the negative direction of $x$ .

XYZ equilibrium structure — Frame `R1-Z-R2-RHO`: An XYZ type molecule and the $z$ embedding along $r_2$ and $r_3$ with negative $x$ .

Frame `R1-Z-R2-RHO`: An XYZ type molecule and the $z$ embedding along $r_2$ and $r_3$ with negative $x$ .

The coordinates are given as above:

$\begin{split} \xi_1 &= r_1 - r_{\rm e}, \\ \xi_2 &= r_2 - r_{\rm e}, \\ \xi_3 &= \rho, \end{split}$

Here is an example of the Z-matrix for NNO.

ZMAT
    N   0  0  0  0   14.00307401
    N   1  0  0  0   14.00307401
    O   1  2  0  0   15.994915
end

`R1-Z-R2-ALPHA`

This is another ‘bond’-embedding with the same vibrational coordinates as in R-ALPHA-Z.

`R2-Z-R1-RHO`

This is a ‘bond’-embedding with the $r_2$ along the $z$ axis and $r_1$ in the positive direction of $x$ , which is illustrated in the figure.

Exact KEO frames for triatomic molecules

There several exact, curvilinear KEO forms are available in TROVE for quasi-linear triatomic molecules, XY₂ and XYZ. These KEOs are implemented in TROVE analytically, together with the corresponding matrix elements with the singularity resolution. These forms require a kinetic block in input with a reference to the specific frame. This is the difference with the linearised KEOs which use a general TROVE approach applicable for arbitrary molecules, except the linear ones. Exact KEO frames require that the COORDS card is set to LOCAL (aka CURVILINEAR), which stands for the curvilinear coordinates.

The associated kinetic expansion order KinOrder must be set to 2 in the following exact KEO. Here the expansion plays a formal role as this KEO i represented as a formal expansion of the 2nd order in terms of two stretches around the non-rigid reference configuration along the $\rho$ coordinate (see the rational expansion type in the basis set in the stretching subgroup 1). Each KEO presented case is constructed to be used with the specific basis set configuration and usually also for a specific frame. These must be always used together.

`KINETIC_XY2_EKE_BISECT`

This is a bisector frame for curvilinear coordinates of an XY₂ molecules with kinetic input block is given by

KINETIC
  kinetic_type  KINETIC_XY2_EKE_BISECT
END

It can be only used with the coordinates/frame type R-RHO-Z (see above), i.e. for the valence coordinates with $\rho$ as the bending angle ( $\rho=0$ at the linear geometry), the basis set laguerre-k and with the NON-RIGID reference configuration. The laguerre-k basis functions are constructed using the Associated Laguerre polynomial with the factor $\sqrt{\rho}$ or $\sqrt{\rho} \rho$ , depending if $K$ (rotational quantum number) is zero or not, respectively. The associated kinetic expansion order KinOrder must be set to 2.

Here is an input example for this case for the C₃ molecule:

KinOrder  2

COORDS local
frame  r-rho-z
MOLTYPE XY2
REFER-CONF NON-RIGID

SYMGROUP C2v(M)

ZMAT
    C   0  0  0  0  11.996709
    C   1  0  0  0  11.996709
    C   1  2  0  0  11.996709
end

BASIS
  0,'JKtau', Jrot 0, krot 12
  1,'numerov','rational', 'morse',  range 0,30,r 8, weight 1.0, points  3000, borders -0.40,1.40
  1,'numerov','rational', 'morse',  range 0,30,r 8, weight 1.0, points  3000, borders -0.40,1.40
  2,'laguerre-k','linear','linear', range 0,56,     weight 1.0, points 10000, borders  0.,110.0 deg
END

KINETIC
  kinetic_type  KINETIC_XY2_EKE_BISECT
END

KINETIC_XYZ_EKE_BOND_SINRHO

This is a bond frame KEO constructed to work with the basis set type sinrho-laguerre-k. The associated frame is R1-Z-R2-RHO, for example for ¹²C¹²C¹³C, the corresponding TROVE input is as follows:

COORDS local (curvilinear)
TRANSFORM   R-RHO-Z-M2-M3-BISECT (FRAME)
MOLTYPE XY2
REFER-CONF NON-RIGID

ZMAT
    C   0  0  0  0  12.000000
    C   1  0  0  0  13.003355
    C   1  2  0  0  12.000000
end

KINETIC
  kinetic_type  KINETIC_XYZ_EKE_bisect
END

The associated symmetry is either Cs(M) or C_ns(M):

symmetry Cs(M)

`KINETIC_XY2_EKE_BISECT_SINRHO`

This a similar to the basis set KINETIC_XY2_EKE_BISECT, which is introduced to work with the basis set sinrho-laguerre-k and only with this basis set. This basis set is constructed from the Associated Laguerre polynomial with the factor $(\sin\rho)^{K+\frac{1}{2}}$ .

The associated TROVE configuration is as in the following input:

KinOrder  2

COORDS local
frame  r-rho-z
MOLTYPE XY2
REFER-CONF NON-RIGID

BASIS
  0,'JKtau', Jrot 0, krot 12
  1,'numerov','rational', 'morse',  range 0,30,r 8, resc 1.0, points  3000, borders -0.40,1.40
  1,'numerov','rational', 'morse',  range 0,30,r 8, resc 1.0, points  3000, borders -0.40,1.40
  2,'sinrho-laguerre-k','linear','linear', range 0,56, resc 1.0, points 10000, borders  0.,110.0 deg
END

KINETIC
  kinetic_type  KINETIC_XY2_EKE_BISECT_SINRHO
END

KINETIC_XYZ_EKE_BISECT

For asymmetric triatomic molecules of type XYZ, there are several ways to orient the in-plane axes $x$ and $z$ at a general instantaneous geometry. The KINETIC_XYZ_EKE_BISECT KEO is constructed for the frame with the $x$ axis along the molecular bisector. The bisector XYZ frame is for asymmetric molecules XYZ with similar masses of Y and Z, i.e. when a bisector is a more natural description of the axis than a bond-frame. This KEO must be used with the correct XYZ-type bisector frames: R-RHO-Z-M2-M3-BISECT is used for general asymmetric molecules with similar masses of Y (M2) and Z (M3).

In principle, the KEO should fully define the configuration of the problem to solve and the associated frame type should not matter for the solution of the Schroedniger equation. The point where the choice of the frame becomes critical is when the dipoles are involved, which need to be re-defined into the correct frame. The actual transformation of the dipole is performed in the subroutine MLloc2pqr_xyz.

For example for ¹²C¹²C¹³C, the corresponding TROVE input is as follows:

COORDS local (curvilinear)
TRANSFORM   R-RHO-Z-M2-M3-BISECT (FRAME)
MOLTYPE XY2
REFER-CONF NON-RIGID

ZMAT
    C   0  0  0  0  12.000000
    C   1  0  0  0  13.003355
    C   1  2  0  0  12.000000
end

KINETIC
  kinetic_type  KINETIC_XYZ_EKE_bisect
END

The associated symmetry is either Cs(M) or C_ns(M):

symmetry Cs(M)

KINETIC_XYZ_EKE_BOND

Is one of the bond-frames constructed for the XYZ type molecules (X is in the centre), with the $z$ axis along the instantaneous orientation of the bond $r_1$ (X-Y). Bond-frames are better suited for molecules with a light nucleus and the $z$ axis is assumed for the heavier nucleus. The associated frame is R1-Z-R2-RHO and the basis set type is laguerre-k:

KinOrder  2

COORDS local
frame  r-rho-z
MOLTYPE XY2
REFER-CONF NON-RIGID

BASIS
  0,'JKtau', Jrot 0, krot 12
  1,'numerov','rational', 'morse',  range 0,30,r 8, resc 1.0, points  3000, borders -0.40,1.40
  1,'numerov','rational', 'morse',  range 0,30,r 8, resc 1.0, points  3000, borders -0.40,1.40
  2,'laguerre-k','linear','linear', range 0,56, resc 1.0, points 10000, borders  0.,110.0 deg
END

KINETIC
  kinetic_type  KINETIC_XYZ_EKE_BOND
END

KINETIC_XYZ_EKE_BOND-R2

This is the case of the bond-frame with $z$ along the bong $r_2$ (Z nucleus). The associated frames and basis sets are R2-Z-R1-RHO and laguerre-k, respectively. See the figure illustrating the R2-Z-R1-RHO frame above.

KINETIC_XYZ_EKE_BOND_SINRHO

This is a bond frame KEO constructed to work with the basis set type sinrho-laguerre-k. The associated frame is R1-Z-R2-RHO, for example for HCN, the corresponding TROVE input is as follows:

COORDS local (curvilinear)
TRANSFORM   R1-Z-R2-RHO (FRAME)
MOLTYPE XY2
REFER-CONF NON-RIGID

ZMAT
    C   0  0  0  0   12.00000000
    N   1  0  0  0   14.00307401
    H   1  2  0  0   1.00782503224
end

KINETIC
  kinetic_type  KINETIC_XYZ_EKE_BOND_SINRHO
END

The associated symmetry is either Cs(M) or C_ns(M):

symmetry Cs(M)

Tetratomics

XY₃ rigid molecules (PH₃ type)

Linearized KEOs use the Eckart frame with the PAS at the equilibrium configuration. The latter has the $z$ axis along the axis of symmetry $C_3$ with the $x$ axis chosen in plane containing the X-Y₁ bond and passing through $C_3$ .

`R-ALPHA`

For the rigid XY₃, like PH₃, the logical coordinate choice of the valence coordinates consists of three bond lengths $r_1$ , $r_2$ , $r_3$ , $\alpha_{23}$ , $\alpha_{13}$ and $\alpha_{12}$ . For the linearised KEO, these valence are used to form the linearised coordinates in the same way as before (1st order expansion in terms of the Cartesian displacement). For the curvilinear KEO (local), the vibrational coordinates are then defined as displacement from the corresponding equilibrium (or non-rigid reference) values:

$\begin{split} \xi_1 &= r_1 - r_{\rm e}, \\ \xi_2 &= r_2 - r_{\rm e}, \\ \xi_3 &= r_3 - r_{\rm e}, \\ \xi_4 &= \alpha_{23}-\alpha_{\rm e}, \\ \xi_5 &= \alpha_{13}-\alpha_{\rm e}, \\ \xi_6 &= \alpha_{12}-\alpha_{\rm e}. \end{split}$

The underlying Z-matrix coordinates are defined using the following Z-matrix:

ZMAT
    N   0  0  0  0  14.00307401
    H   1  0  0  0   1.00782505
    H   1  2  0  0   1.00782505
    H   1  2  3  1   1.00782505
end

This representation has been used for PH₃ [15SoAlTe], SbH₃ [10YuCaYa], AsH₃ [19CoYuKo], PF₃ [19MaChYa].

XY₃ non-rigid with umbrella motion (NH₃ type)

MolType XY3

Consider the Ammonia molecule NH3₃ with a relatively small barrier to the planarity. The three bending angles are not suitable in this case as they cannot distinguish the two opposite inversion configurations above and below the planarity. Instead, an umbrella mode has to be introduced as one of the bending modes. An example of an umbrella coordinate is an angle between the $C_3$ symmetry axis and the bond X-Y, see Figure. It is natural to use the non-rigid reference configuration along the umbrella, inversion motion and build the KEO as an expansion around it. For two other bending modes, in principle one can use two inter-bond angles, e.g. $\alpha_2$ and $\alpha_3$ , two dihedral angles $\phi_2$ and $\phi_3$ . However, for symmetry reasons, TROVE employs the symmetry-adapted bending pair $S_a$ and $S_b$ , defined as follows:

$S_a = \frac{1}{\sqrt{6}} (2 \alpha_{23}-\alpha_{13}-\alpha_{12}), \\ S_b = \frac{1}{\sqrt{2}} ( \alpha_{13}-\alpha_{12})$

or

$S_a = \frac{1}{\sqrt{6}} (2 \phi_{23}-\phi_{13}-\phi_{12}), \\ S_b = \frac{1}{\sqrt{2}} ( \phi_{13}-\phi_{12})$

The umbrella mode for any instantaneous configuration of the nuclei is defined in TROVE as the angle between a trisector

Linearized KEOs use the Eckart frame with the PAS at the equilibrium configuration. The latter has the $z$ axis along the axis of symmetry $C_3$ with the $x$ axis chosen in plane containing the X-Y₁ bond and passing through $C_3$ .

`R-S-DELTA`

For this frame case, the following valence-based coordinates are used:

$\begin{split} \xi_1 &= r_1 - r_{\rm e}, \\ \xi_2 &= r_2 - r_{\rm e}, \\ \xi_3 &= r_3 - r_{\rm e}, \\ \xi_4 &= \frac{1}{\sqrt{6}} (2 \alpha_{23}-\alpha_{13}-\alpha_{12}), \\ \xi_5 &= \frac{1}{\sqrt{2}} ( \alpha_{13}-\alpha_{12}), \\ \xi_6 &= \delta. \end{split}$

The umbrella mode :math:\delta is defined as an angle between the trisector and any of the bonds X-Y. The other 5 coordinates are then used to construct the corresponding linearised vibrational coordinates (see above) for the linearised (linear) representation.

ZXY₂ (Formaldehyde type)

MolType ZXY2

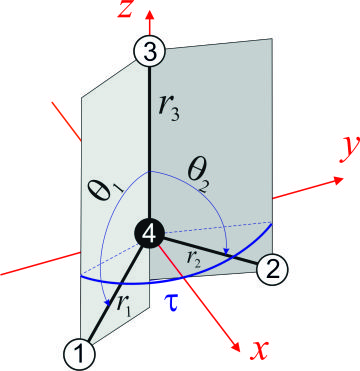

The common valence coordinate choice for ZXY₂ includes three bond lengths , two bond angles and a dihedral angle $\tau$ . The latter can be treated as the reference for a non-rigid reference configuration in TROVE on a grid of $\tau_i$ ranging from :math`[-tau_{0}ldots tau_{0}]`, while other 5 modes are treated as displacement from their equilibrium values at each grid point $\tau_i$ . The reference configuration is always in the principle axis sysetm, i.e. for each value of the book angle $\tau$ , TROVE solve the PAS conditions to reorient the molecule.

Apart from the standard linearised KEO, a curvilinear exact KEO has been recently introduced into TROVE. This is exactly the R-THETA-TAU type, detailed below.

`R-THETA-TAU`

$\begin{split} \xi_1 &= r_1 - r_{\rm e}, \\ \xi_2 &= r_2 - r_{\rm e}, \\ \xi_3 &= r_3 - r_{\rm e}, \\ \xi_4 &= \theta_1, \\ \xi_5 &= \theta_2, \\ \xi_6 &= \tau. \end{split}$

Rigid isotopologues of XY₃ as ZXY₂ type

The Z type can be used to define single or double deuterated isotopologues of an XY₃ molecule such as a rigid PH₃. For PDH₂, we use R-THETA-TAU in combination with the Z-matrix given as follows:

ZMAT
    P   0  0  0  0  14.00307401
    D   1  0  0  0   2.01410178
    H   1  2  0  0   1.007825032
    H   1  2  3  2   1.007825032
end

Here, the equilibrium frame coinsides with the principle axis system with the $z$ axis in the plane contemning PD and bisecting the angle between two PH bonds.

For a PH₂D type isotopologue, the Z-matrix is given by

ZMAT
    P   0  0  0  0  14.00307401
    H   1  0  0  0   1.007825032
    D   1  2  0  0   2.01410178
    D   1  2  3  2   2.01410178
end

Non-rigid isotopologues of XY₃ as ZXY₂ type

For non-rigid NH₂D and NHD₂, the choice of the non-rigid frame becomes important. During to the large amplitude motion, the frame can lead to a flip of the moments of inertia. In TROVE, the frame is chosen as the principle axis system (PAS), which, for most of the system, is straightforward to define. Therefore, frame and the internal coordinates are usually selected via a single keyword Transform. For non-rigid systems, however, due to accidental degeneracies of the moments of inertia, the PAS along the non-rigid path must be carefully constructed to prevent such flips. Besides, for the ammonia isotopologues, despite the structure ZXY₂ being formally similar the structure of formaldehyde, the coordinates should be chosen as ammonia-like, not formaldehyde-like. Therefore, in this case we distinguish frame and transform. For NHD₂, the following setting is used:

TRANSFORM  R-S-DELTA
frame      R1-Z-R2-X-Y
MOLTYPE    XY3
REFER-CONF NON-RIGID

The valence coordinates is defined using the Zmat card as follows:

ZMAT
    N   0  0  0  0  14.00307401
    D   1  0  0  0   2.01410178
    H   1  2  0  0   1.007825032
    H   1  2  3  1   1.007825032
end

The coordinates type R-S-DELTA (card TRANSFORM) defines the internal coordinates the same as in the case of XY₃, while the frame R1-Z-R2-X-Y places the $z$ axis containing the vector $\vec{r}_1$ (ND), axis $x$ in the direction of the $\vec{r}_1$ (NH₁) and the symmetry plane to be $zy$ , see the figure. This non-rigid frame of NH₂D is illustrated in the side figure, where the evolution of the PAS is shown. At the planar configuration, the $y$ axis is normal to the plane with $z$ as the symmetry axis.

The card MOLTYPE XY3 means that all the associated transformation rules are implemented in the module mol_xy3.f90.

The same non-rigid frame is used for NHD₂, now with the $z$ axis containing the vector $\vec{r}_1$ (NH), axis $x$ in the direction of the $\vec{r}_1$ (ND₁) and the symmetry plane to be $zy$ , see the figure. This non-rigid frame of NHD₂ and the evolution of PAS is illustrated in the side figure with the Z-matrix given by

ZMAT
    N   0  0  0  0  14.00307401
    D   1  0  0  0   2.01410178
    H   1  2  0  0   1.007825032
    H   1  2  3  1   1.007825032
end

Although the definition of the frames is similar, the transformations of the corresponding PASs are very distinct.

A chain ABCD type molecule (hydrogen peroxide type)

MolType ABCD

`R-ALPHA-TAU`

The six internal coordinates for the frame R-ALPHA-TAU type consist of three stretching, two bending and one dihedral coordinates as given by

$\begin{split} \xi_1 &= R - R_{\rm e}, \\ \xi_2 &= r_1 - r_{\rm e}, \\ \xi_3 &= r_2 - r_{\rm e}, \\ \xi_4 &= \alpha_{123}-\alpha_{\rm e}, \\ \xi_5 &= \alpha_{234}-\alpha_{\rm e}, \\ \xi_6 &= \delta. \end{split}$

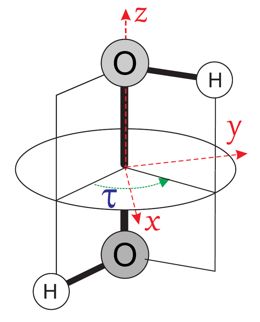

The non-rigid reference frame such that the $x$ axis bisects the dihedral angle.

For this embedding, in order to be able to separate the vibrational and rotational bases into a product form, it is important to the an extended range for the dihedral angle $\delta = 0\ldots 720^\circ$ . Otherwise the eigenfunction is obtained double valued due to the $x$ axis appearing in the opposite direction to the two bonds after one $\delta = 360^\circ$ revolution.

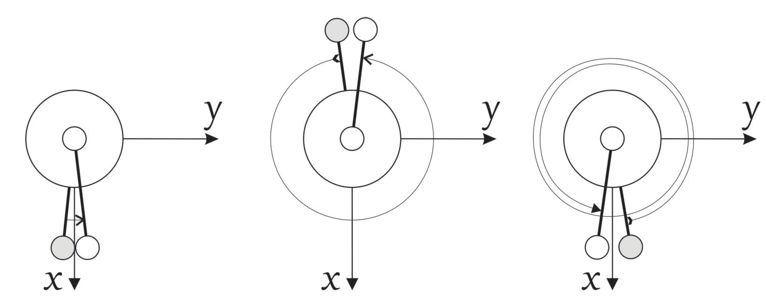

H2O2 3 displays — Principal axis system with an extended torsional angle $\delta = 0\ldots 720^\circ$ for HOOH.

Principal axis system with an extended torsional angle $\delta = 0\ldots 720^\circ$ for HOOH.

A minimum energy path (MEP) as a non-rigid reference configuration

In MEP, the 5 internal coordinate displacements $\xi_i$ are defined around $\delta$ -dependent reference values. The latter are obtained as oprmised geometries by minimised molecule’s energy:

$\begin{split} \xi_1 &= R - R_{\rm ref}(\delta), \\ \xi_2 &= r_1 - r_{\rm ref}(\delta), \\ \xi_3 &= r_2 - r_{\rm ref}(\delta), \\ \xi_4 &= \alpha_{123}-\alpha_{\rm ref}(\delta), \\ \xi_5 &= \alpha_{234}-\alpha_{\rm ref}(\delta), \\ \xi_6 &= \delta, \end{split}$

where :math: the MEP values are given by a parameterised expansion, for example

$\zeta_i^{\rm ref} = \zeta_i^{\rm e} + \sum_{n} a_i^n (\cos\delta - \cos\delta_{\rm e})$

where ${\bf\zeta} = \{R,r_1,r_2,\alpha_{123},\alpha_{234}\}$ .

Five-atomic molecules

The XY₄ molecule (T_d) and the `XY4` type

MolType XY4

The frame for the tetrahedral molecule XY₄ spanning the T_d(M) symmetry group is chosen with the $xyz$ axes orthogonal to the faces of the box containing the molecule with the four atoms ${\rm Y}_i$ at its vertices, as shown in the figure, with the Cartesian coordinates at equilibrium given by

$\begin{split} H_{1x} &= -\frac{r_{\rm e}}{\sqrt{3}}, H_{1y} = \frac{r_{\rm e}}{\sqrt{3}}, H_{1z} = \frac{r_{\rm e}}{\sqrt{3}}, \\ H_{2x} &= -\frac{r_{\rm e}}{\sqrt{3}}, H_{2y} = -\frac{r_{\rm e}}{\sqrt{3}}, H_{2z} = -\frac{r_{\rm e}}{\sqrt{3}}, \\ H_{3x} &= \frac{r_{\rm e}}{\sqrt{3}}, H_{3y} = \frac{r_{\rm e}}{\sqrt{3}}, H_{3z} = -\frac{r_{\rm e}}{\sqrt{3}}, \\ H_{4x} &= \frac{r_{\rm e}}{\sqrt{3}}, H_{4y} = -\frac{r_{\rm e}}{\sqrt{3}}, H_{4z} = \frac{r_{\rm e}}{\sqrt{3}}. \\ \end{split}$

`TRANSFORM R-ALPHA`

The tetrahedral five-atomic molecule XY₄ has 9 vibrational degrees of freedom. For a semi-rigid molecule (i.e. ignoring any isomerisation that can occur at higher energies), they can be characterised by four bond lengths $r_i \equiv r_{{\rm C}-{\rm H}_i}$ and six inter-bond angles $\alpha_{{\rm H}_i-{\rm C}-{\rm H}_j} = \alpha_{ij}$ . For the equilibrium value of the tetrahedral angle $\alpha$ , $\cos(\alpha_{\rm e})$ = $-1/\sqrt{3}$ which explains the factor $1/\sqrt{3}$ in the definition of the Cartesian coordinates. There should, however, be only 9 independent vibrational degrees of freedom in a 5 atomic molecule. One of the inter-bond angles $\alpha_{ij}$ is redundant as there should be only five independent bending vibrations, with the following redundancy condition:

(1) $\left| \begin{array}{cccc} 1 & \cos\alpha_{12} & \cos\alpha_{13} & \cos\alpha_{14} \\ \cos\alpha_{12} & 1 & \cos\alpha_{23} & \cos\alpha_{24} \\ \cos\alpha_{13} & \cos\alpha_{23} & 1 & \cos\alpha_{34} \\ \cos\alpha_{14} & \cos\alpha_{24} & \cos\alpha_{34} & 1 \end{array} \right| = 0 .$

XY₄ belongs to the T_d(M) molecular symmetry group, which consists of five irreducible representations, $A_1$ , $A_2$ , $E$ , $F_1$ and $F_2$ . One way to define independent bending modes is to reduce the six inter-bond angles $\alpha_{ij}$ to five symmetry-adapted irreducible combinations, which, together with four bond lengths $r_i$ form nine independent vibrational modes $\xi_i$ as follows: four stretches

(2) $\xi_i =r_i, \;\; i = 1,2,3,4,$

two $E$ -symmetry bends

(3) $\begin{split} \xi_5^{E_a} &= \frac{1}{\sqrt{12}} (2 \alpha_{12} - \alpha_{13} - \alpha_{14} - \alpha_{23} - \alpha_{24} + 2 \alpha_{34} ), \\ \xi_6^{E_b} &= \frac{1}{2} (\alpha_{13} - \alpha_{14} - \alpha_{23} + \alpha_{24} ), \end{split}$

and three $F$ -symmetry bends

(4) $\begin{split} \xi_7^{F_{2x}} &= \frac{1}{\sqrt{2}} ( \alpha_{24} - \alpha_{13} ), \\ \xi_8^{F_{2y}} &= \frac{1}{\sqrt{2}} ( \alpha_{23} - \alpha_{14} ), \\ \xi_9^{F_{2z}} &= \frac{1}{\sqrt{2}} ( \alpha_{34} - \alpha_{12} ), \end{split}$

where the corresponding symmetries of the bending modes are indicated.

The stretching modes $r_i$ can also be in principle combined into symmetry-adapted coordinates in T_d(M):

(5) $\begin{split} \xi_1^{A_1} &= \frac{1}{2} \left( r_1 + r_2 + r_3 + r_4\right), \\ \xi_2^{F_{2x}} &= \frac{1}{2} \left( r_1 - r_2 + r_3 - r_4\right), \\ \xi_3^{F_{2y}} &= \frac{1}{2} \left( r_1 - r_2 - r_3 + r_4\right), \\ \xi_4^{F_{2z}} &= \frac{1}{2} \left( r_1 + r_2 - r_3 - r_4\right). \end{split}$

ZXY₃ (Methyl Chloride type)

MolType ZXY3

For the ZXY₃ type molecule we use valence coordinates consisting of four bond lengths $r_0$ , $r_i$ ( $i-1,2,3$ ), three bond angles $\beta_i$ and two symmetry adapted dihedral coordinates constructed from three dihedral angles $\tau_{12}, \tau_{23}, \tau_{13}$ , where $\tau_{12}+\tau_{23}+\tau_{13} = \pi$ . This is a rigid type, where all coordinates are treated as displacements from the corresponding equilibrium values. Currently, only the standard linearised KEO is available in TROVE.

`TRANSFORM R-BETA-SYM`

$\begin{split} \xi_1 &= r_0 - r_{\rm e}^{(0)}, \\ \xi_2 &= r_1 - r_{\rm e}, \\ \xi_3 &= r_2 - r_{\rm e}, \\ \xi_4 &= r_3 - r_{\rm e}, \\ \xi_5 &= \beta_1-\beta_{\rm e}, \\ \xi_6 &= \beta_2-\beta_{\rm e}, \\ \xi_7 &= \beta_3-\beta_{\rm e}, \\ \xi_8 &= \frac{1}{\sqrt{6}} (2 \tau_{23}-\tau_{13}-\tau_{12}), \\ \xi_9 &= \frac{1}{\sqrt{2}} ( \tau_{13}-\tau_{12}). \\ \end{split}$

The Z-matrix coordinates (underlying basic TROVE coordinates) are as given by the Z-matrix rules:

ZMAT
    C   0  0  0  0  12.000000000
    Cl  1  0  0  0  34.968852721
    H   1  2  0  0   1.007825035
    H   1  2  3  0   1.007825035
    H   1  2  3  4   1.007825035
end

are as follows:

$r_0$
$r_1$ , $\beta_{1}$
$r_2$ , $\beta_{2}$ , $\alpha_{12}$
$r_3$ , $\beta_{3}$ , $\alpha_{13}$

where alpha_{12}` and $\alpha_{13}$ are interbond angles between the bonds X-Y_i. The Z-matrix coordinates are transformed to :math:`tau_{12}, tau_{23}, tau_{13} ` via the following trigonometric rules:

$\begin{split} \cos \tau_{12} &= \frac{\cos\alpha_{12}-\cos\beta_{1}\cos\beta_{2}}{\sin\beta_{1}\sin\beta_{2}}, \\ \cos \tau_{13} &= \frac{\cos\alpha_{13}-\cos\beta_{1}\cos\beta_{3}}{\sin\beta_{1}\sin\beta_{3}}, \\ \tau_{23} &= 2\pi - \tau_{12}-\tau_{13},\\ \cos \alpha_{23} &= \cos\beta_{2}\cos\beta_{3}+\cos(\tau_{12}+\tau_{13})\sin\beta_{2}\sin\beta_{3}.\\ \end{split}$

The CH₃D molecule (C_3v) of the `ZXY3` type

`TRANSFORM R-BETA-SYM`

This is a similar to the Methyl Chloride molecule type (MOLTYPE ZXY3) in terms of the symmetry properties, although being a methane-deuterated product. The same coordinate Transform type TRANSFORM R-BETA-SYM as for fZXY₃ can be used for CH₃D with the following setting:

TRANSFROM R-BETA-SYM
MOLTYPE   ZXY3

but with the PES of methane (see Potential energy functions).

Six-atomic molecules

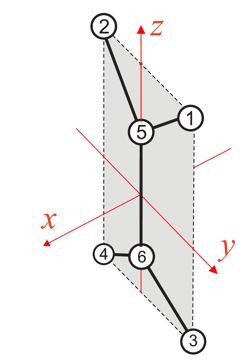

The C₂H₄ molecule and the `C2H4` type

MolType C2H4

`C2H4_2BETA_1TAU`

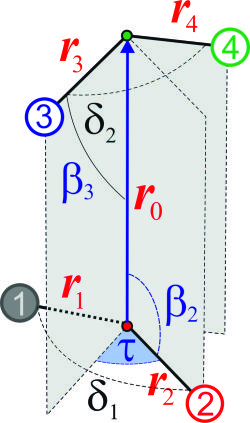

The internal coordinates are defined using the following 12 valence coordinates: 5 stretching (molecular bond) coordinates, 4 bending (inter-bond angles) and 3 dihedral coordinates, with the last mode as a book angle describing the relative motion of two moieties:

$\begin{split} \xi_1 &= r_0 - r_{\rm e}^{(0)}, \\ \xi_2 &= r_1 - r_{\rm e}, \\ \xi_3 &= r_2 - r_{\rm e}, \\ \xi_4 &= r_3 - r_{\rm e}, \\ \xi_5 &= r_4 - r_{\rm e}, \\ \xi_6 &= \beta_1-\beta_{\rm e}, \\ \xi_7 &= \beta_2-\beta_{\rm e}, \\ \xi_8 &= \beta_3-\beta_{\rm e}, \\ \xi_9 &= \beta_4-\beta_{\rm e}, \\ \xi_{10} &= \theta_1 - \pi, \\ \xi_{11} &= \theta_2 - \pi, \\ \xi_{12} & = \theta_1 + \theta_2 - 2\tau, \end{split}$

where

$\tau = \left\{ \begin{array}{cc} \delta, & \delta <\pi, \\ \delta - 2\pi, & \delta >\pi, \\ \end{array} \right.$

This type can be used both for rigid and non-rigid molecule types. The non-rigid coordinate is $\xi_{12}$ in the latter case.

Frames and vibrational coordinates

Triatomics

XY2 type molecules

R-RHO-Z

R-RHO-Z-ECKART

R-ALPHA-Z

R-RHO-Z-M2-M3

XYZ type molecules

R1-Z-R2-RHO

R1-Z-R2-ALPHA

R2-Z-R1-RHO

Exact KEO frames for triatomic molecules

KINETIC_XY2_EKE_BISECT

KINETIC_XYZ_EKE_BOND_SINRHO

KINETIC_XY2_EKE_BISECT_SINRHO

KINETIC_XYZ_EKE_BISECT

KINETIC_XYZ_EKE_BOND

KINETIC_XYZ_EKE_BOND-R2

KINETIC_XYZ_EKE_BOND_SINRHO

Tetratomics

XY3 rigid molecules (PH3 type)

R-ALPHA

XY3 non-rigid with umbrella motion (NH3 type)

R-S-DELTA

ZXY2 (Formaldehyde type)

R-THETA-TAU

Rigid isotopologues of XY3 as ZXY2 type

Non-rigid isotopologues of XY3 as ZXY2 type

A chain ABCD type molecule (hydrogen peroxide type)

R-ALPHA-TAU

A minimum energy path (MEP) as a non-rigid reference configuration

Five-atomic molecules

The XY4 molecule (Td) and the XY4 type

TRANSFORM R-ALPHA

ZXY3 (Methyl Chloride type)

TRANSFORM R-BETA-SYM

The CH3D molecule (C3v) of the ZXY3 type

TRANSFORM R-BETA-SYM

Six-atomic molecules

The C2H4 molecule and the C2H4 type

C2H4_2BETA_1TAU

XY₂ type molecules

`R-RHO-Z`

`R-RHO-Z-ECKART`

`R-ALPHA-Z`

`R1-Z-R2-RHO`

`R1-Z-R2-ALPHA`

`R2-Z-R1-RHO`

`KINETIC_XY2_EKE_BISECT`

`KINETIC_XY2_EKE_BISECT_SINRHO`

XY₃ rigid molecules (PH₃ type)

`R-ALPHA`

XY₃ non-rigid with umbrella motion (NH₃ type)

`R-S-DELTA`

ZXY₂ (Formaldehyde type)

`R-THETA-TAU`

Rigid isotopologues of XY₃ as ZXY₂ type

Non-rigid isotopologues of XY₃ as ZXY₂ type

`R-ALPHA-TAU`

The XY₄ molecule (T_d) and the `XY4` type

`TRANSFORM R-ALPHA`

ZXY₃ (Methyl Chloride type)

`TRANSFORM R-BETA-SYM`

The CH₃D molecule (C_3v) of the `ZXY3` type

`TRANSFORM R-BETA-SYM`

The C₂H₄ molecule and the `C2H4` type

`C2H4_2BETA_1TAU`
