Molecules

In order to define a Hamiltonian for an arbitrary molecular systems the following ingredients are required:

Molecular frame $xyz$ defining the rotation of the molecule via the positions of the three Euler angles $\alpha,\beta,\gamma$ ;
$3N-6$ ( $3N-5$ ) vibrational coordinates $\xi_n$ , internal degrees of freedom defining the molecular vibrations;
Kinetic energy operator (KEO) in a sum-of-products form. In TROVE it has to be an expansion in terms of some 1D functions of $\xi_n$ , their conjugate momenta and rotational angular momenta $\hat{J}_\alpha$ ;
Potential energy function (PEF). In TROVE, it is also an expansion in terms of some 1D functions of $\xi_n$ .
For intensity calculations, 3D dipole moment functions, also as expansion in terms of some 1D functions of $\xi_n$ .

In this chapter a list is given of all of the molecules which have been studied using TROVE. This serves two purposes: as a summary of the development of TROVE over the years and as a reference for adding further molecules. As discussed in Adding new molecules, setting up a new molecule in TROVE is fairly straightforward if a molecule of the same symmetry and structure has already been implemented.

The list of molecules are given in roughly chronological order with the relevant references. Details are given of the symmetry, basis sets used, coordinates used, the analytical forms of the PES and DMS and the frequency ranges of linelists if they were calculated.

Here we introduce different ingredients available for triatomic molecules, including

Molecular frames $xyz$ ;
$3N-6$ ( $3N-5$ ) vibrational coordinates $\xi_n$ ;
Kinetic energy operators (KEO);
Potential energy functions (PEF);
For intensity calculations, 3D dipole moment functions.

Hydrogen sulfide, SiH₂

Symmetry: $C_{2v}$

Coordinates: Linearized coordinates. $\xi_1 = r_1^l - r_e$ , $\xi_2 = r_2^l - r_e$ and $\xi = \alpha^l - \alpha_e$ .

Coordinate to expand kinetic energy: $g_n = \xi_n (n=1,2,3)$ .

Coordinates to expand Potential energy: $f_n = 1 - \exp(-a(r_1^l - r_e))$ $(n = 1, 2)$ , $f_3 = \cos(\alpha^l) - \cos(\alpha_e)$

Primitive basis set: Numerov generated for all coordinates

Kinetic energy expansion order: 6

Potential expansion order: 8

Polyad scheme: $P = 2(v_1 + v_2) + v_3 \leq 24$

Potential energy function: POTEN_XY2_MORSE_COS with a refined potential represented in terms of Morse coordinates and $\cos(\alpha)$ .

Dipole moment surface expansion: Ab initio DMS of the type xy2_pq_coeff.

Reference: [TROVE]

The TROVE input for step 1 is illustrated below.

mem 64 gb

KinOrder  6
PotOrder  8

Natoms 3
Nmodes 3

SYMGROUP C2v(M)

verbose 5

dstep 2.0e-03
COORDS linear
FRAME  r-rho-z
MOLTYPE XY2
REFER-CONF NON-RIGID

PRIMITIVES
  Npolyads     24
 END

CONTRACTION
  Npolyads        24
  sample_points   60
  sample_attempts 500
  symm_toler      1e-5
END

DIAGONALIZER
 SYEV
 enermax 18000
end

ZMAT
    Si  0  0  0  0   27.97692654
    H   1  0  0  0   1.007825032
    H   1  2  0  0   1.007825032
end
control
step 1
external
end

BASIS
 0,'JKtau', Jrot 0
 1,'numerov','linear', 'morse',  range 0, 12, r 8, resc 2.0, points 3000,borders -0.8,1.40
 1,'numerov','linear', 'morse',  range 0, 12, r 8, resc 2.0, points 3000,borders -0.8,1.40
 2,'numerov','linear', 'linear', range 0, 24, r 8, resc 1.0, points 3000,borders 10.0,160.0 deg
END

EQUILIBRIUM
re            9      1.5144017558
re            9      1.5144017558
alphae        9      92.00507388 DEG
end

SPECPARAM
a-Morse           0      0.127050746200E+01
a-Morse           0      0.127050746200E+01
END

POTEN
NPARAM  102
compact
POT_TYPE  POTEN_XY2_MORSE_COS
COEFF  list  (powers or list)
RE13          0.15144017558000E+01
ALPHAE        0.92005073880000E+02
AA            0.12705074620000E+01
B1            0.50000000000000E+06
B2            0.50000000000000E+05
G1            0.15000000000000E+02
G2            0.10000000000000E+02
V0            0.00000000000000E+00
F_0_0_1      -0.11243403302598E+02
F_1_0_0      -0.94842865087918E+01
F_0_0_2       0.17366522840412E+05
F_1_0_1      -0.25278354456474E+04
F_1_1_0       0.20295521820240E+03
F_2_0_0       0.38448640879698E+05
.....
....
end

DIPOLE
dimension 3
NPARAM  72 99 0
compact
TYPE  xy2_pq_coeff
COEFF   list  (powers or list)
COORDS  linear linear linear
Orders   6  6  6
dstep 0.005 0.005 0.005
Parameters
re               0.152000000000E+01
alphae           0.945000000000E+02
f_1_0_0         -0.170274198034E+01
f_1_0_1         -0.122791150585E+00
f_2_0_0         -0.519187500441E+00
f_1_0_2          0.185415937182E+00
f_2_0_1          0.715740118118E+00
f_2_1_0         -0.147662628115E+00
f_3_0_0          0.598556914831E+00
.....
re               0.152000000000E+01
alphae           0.945000000000E+03
a                0.000000000000E+00
dummy            0.000000000000E+00
xp(1)            0.176547582678E+01
x0x0x1          -0.492245503195E+01
x1x0x0          -0.193070832496E+01
x0x0x2           0.900424248416E+01
x0x2x0           0.114484321174E+01
x1x0x1          -0.116840841811E+01
x2x0x0          -0.101953882061E+01
x0x0x3          -0.152151621639E+02
.....
.....
end

A short description of the keywords, cards and sections used is as follows.

Mem: Maximal memory value available for the job in gb, mb or kb. TROVE uses an internal book keeping of the memory usage and will stop if it is large than the mem value.

KinOrder: Expansion order of the KEO.

PotOrder: Expansion order of the PEF.

Natoms: Number of atoms (nuclei) $N$ .

Nmodes: Number of modes or degrees of freedom $M$ (here $M=3N-6$ ).

SYMGROUP: Molecular symmetry group.

verbose: Verbosity level controlling amount of information in the standard output.

dstep: numerical difference step size used in finite differences (Angstrom or radian).

COORDS: type of the coordinate, linear (linearised) or local (curvilinear).

FRAME: Molecular frame.

MOLTYPE: The type of molecule (XYZ, XY2, XY3, XY4, ZXY3, etc).

REFER-CONF: reference configuration, RIGID or NON-RIGID.

PRIMITIVES: block defining parameters of the primitive bases.

Npolyads: Maximal number of polyads.

CONTRACTION: Block defining parameters of the contracted basis set.

Npolyads: Maximal number of polyads in the contracted basis.

sample_points: number of sampling points in the symmetrisation procedure.

sample_attempts: number of symmetrisation attempts.

symm_toler: Numerical tolerance used in symmetrisation.

DIAGONALIZER: Block defining the diagonaliser (eigensolver) as well as its options (number of roots, maximal energy etc).

SYEV: LAPACK Eigensolver type DSYEV.

enermax: Maximal energy (cm^-1).

ZMAT: Z-matrix block defining the Z-matrix coordinates and nuclear (atomic) masses.

control: Control block (see TROVE Quick start).

Basis: Basis set block (See Basis sets).

EQUILIBRIUM: Equilibrium values of the molecule geometries in terms of the Z-matrix coordinates.

SPECPARAM: Special parameters used to define the coordinate to expand PEF, e.g. the Morse parameter $a$ .

POTEN: Potential block (see Potential energy functions).

DIPOLE: Dipole moment block (or external field block).

CO₂

This is a linear triatomic molecule for which a number of exact KEOs implemented in TROVE.

Molecular type (MOLTYPE): XY2.

Symmetry: there are two types of symmetries available for symmetric quasi-linear triatomic molecules, molecular symmetry group $C_{2v}$ (EM) and Artificial extended molecular symmetry $C_{\rm C2vn}$ (AEM).

Coordinates: curvilinear (local).

Coordinates type (TRANSFORM): r-rho-z: $r_1$ , $r_2$ , and $\rho$ .

Frame: $z$ axis is along the molecule at the linear configuration, with the $x$ -axis oriented in-plane as a bisector at any instantaneous bend configuration of nuclei. The definition of the frame in this case is directly linked to the coordinate type r-rho-z is therefore omitted from the input.

It is based on seven internal coordinates defined using the following Z-matrix (using nuclear masses):

ZMAT
    C   0  0  0  0   11.996709
    O   1  0  0  0   15.9905256
    O   1  2  0  0   15.9905256
end

Kinetic energy operator

KEO: exact, constructed using the bisector frame and formally expanded in terms of $1/r_1$ , $1/r_2$ to the 2nd order about the non-rigid reference frame.

KEO type (kinetic_type): KINETIC_XY2_EKE_BISECT

Kinetic energy expansion order: 2

Primitive basis set: Numerov-generated for coordinates $r_1$ and $r_2$ and the Laguerre-k for $\rho$ :

BASIS
  0,'JKtau', J 0, krot   40
  1,'numerov','rational', 'morse',  range 0,36,  resc 1.0, points  1000, borders -0.40,1.0
  1,'numerov','rational', 'morse',  range 0,36,  resc 1.0, points  1000, borders -0.40,1.0
  2,'laguerre-k','linear','linear', range 0,64,  resc 1.0, points  3000, borders  0.,160.0 deg
END

Here the card krot 40 indicates the highest vibrational angular momentum and the rotational quantum number $k$ (See Chapter about Basis sets). rational stands for the expansion in terms of $1/r_1$ or $1/r_2$ . Modes 1 and 2 are combined into sub-group 1.

Basis set: Polyad scheme with $P = (v_1 + v_2 + v_3) \leq 64$ , :math:` v_1 leq 36`, :math:` v_2 leq 36`, :math:` v_3 leq 64`.

Spectroscopic Model UCL-4000

This model was used to produce the UCL-4000 line list for CO $2$ [23MeOwTe].

PEF type (POT_TYPE): poten_co2_ames1. This is the PEF Ames1 by Huang et al. [17HuScFr].

Potential expansion order: 8 using the PEF poten_xy3_morbid_10. Expansion order (PotOrder) is 12.

Coordinates to expand Potential energy: Morse (see basis ) for stretching coordinates while the angle is treated explicitly.

Potential energy function: Refinement of published potential [09YuBaYa].

Dipole moment surface expansion: TYPE DIPOLE_AMES1, AMES1 DMS by Huang et al. [17HuScFr].

For the spectroscopic model UCL-4000, a sample input file can be found at exomol.com, see UCL-4000 spectroscopic model.

Non-symmetric isotopologue ¹⁸CO¹⁶

The basic model is the same as for CO₂ with some differences.

Molecular type (MOLTYPE): XY2 (same as before).

Symmetry: there are two types of symmetries available for non-symmetric quasi-linear triatomic molecules, molecular symmetry group $C_{s}$ (EM) and Artificial extended molecular symmetry $C_{\rm Cvn}$ (AEM).

Coordinates: curvilinear (local).

Frame and associated coordinates type (TRANSFORM): R-RHO-Z-M2-M3. It uses the same valence coordinates as before, $r_1$ , $r_2$ , and $\rho$ . In the linear configuration, the frame is the $z$ axis along the molecule oriented from atom 1 to atom 2 (i.e. from mass 2 to mass 3, see Z-matrix), which is the same orientation as r-rho-z and also with the bisecting axis $x$ .

The following Z-matrix (using nuclear masses) is used:

ZMAT
    C   0  0  0  0   11.996709
    O   1  0  0  0   17.99477097
    O   1  2  0  0   15.99052598
end

Kinetic energy operator

KEO: exact, constructed using the bisector frame and formally expanded in terms of $1/r_1$ , $1/r_2$ to the 2nd order about the non-rigid reference frame.

KEO type (kinetic_type): KINETIC_XYZ_EKE_BISECT. It is also a bisector-frame KEO but developed for a non-symmetric molecule XYZ

Kinetic energy expansion order: 2

Primitive basis set has the same structure as for the XY $2$ : :

BASIS
0,’JKtau’, Jrot 0, krot 16 1,’numerov’,’rational’, ‘morse’, range 0,36,r 8, resc 1.0, points 4000, borders -0.40,1.55 2,’numerov’,’rational’, ‘morse’, range 0,36,r 8, resc 1.0, points 4000, borders -0.40,1.55 3,’laguerre-k’,’linear’,’linear’, range 0,56, resc 1.0, points 12000, borders 0.,150.0 deg

END

with the main difference that all three modes are treated independently.

Spectroscopic Model UCL-4000

The spectroscopic model (PEF and DMF) are the same used to produce the UCL-4000 line list for CO $2$ [23MeOwTe].

KOH

This is a linear triatomic molecule for which a number of exact KEOs implemented in TROVE.

Molecular type (MOLTYPE): XY2.

Symmetry: $C_{s}$ (EM) and or $C_{\rm Cvn}$ .

Coordinates: curvilinear (local).

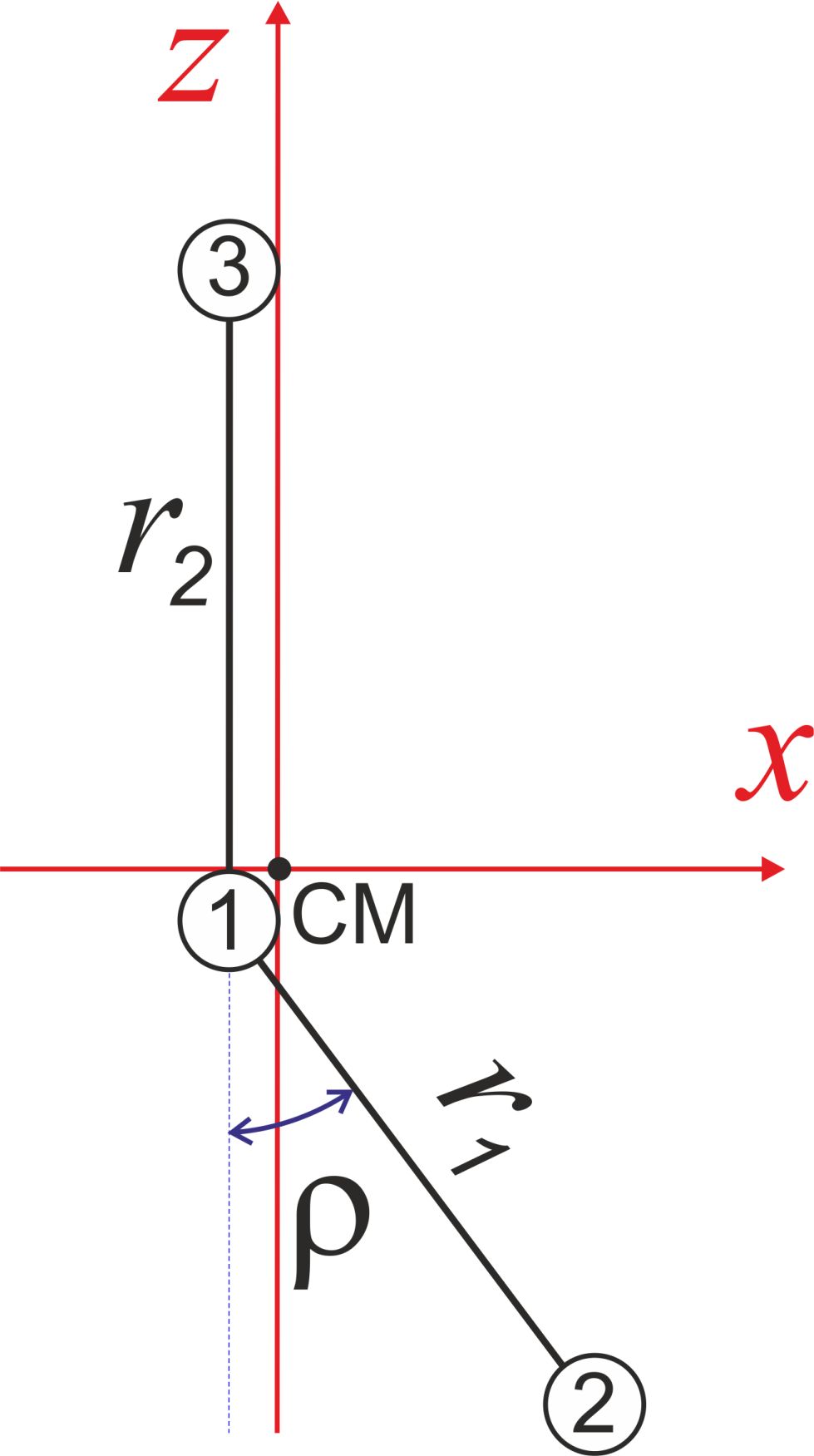

Coordinates type (TRANSFORM): R2-Z-R1-RHO: $r_1$ , $r_2$ , and $\rho$ .

Frame: $z$ axis is along atom 2 (vector $r_1$ ), with the $x$ -axis oriented in-plane at any bend configuration of nuclei and positive for atom 2 ( $\vec{r}_1$ ). The definition of the frame in this case is directly linked to the coordinate type R2-Z-R1-RHO is therefore omitted from the input.

Z-matrix:

ZMAT
    O   0  0  0  0   15.99491463
    K   1  0  0  0   38.9637074
    H   1  2  0  0   1.007825035
end

Kinetic energy operator

KEO: exact, formally expanded in terms of $1/r_1$ , $1/r_2$ to the 2nd order about the non-rigid reference frame.

KEO type (kinetic_type): KINETIC_XY2_EKE_BISECT_sinrho. It is linked to the basis set type sinrho-laguerre-k used for the bending mode.

BASIS
  0,'JKtau', Jrot 0, krot 10
  1,'numerov','rational', 'morse',  range 0,20,  resc 2.0, points  1000, borders -0.5 ,2.0
  2,'numerov','rational', 'morse',  range 0,20,  resc 2.0, points  1000, borders -0.35,0.8
  3,'sinrho-laguerre-k','linear','linear', range 0, 40, resc 1.0, points  3000, borders  0.,180.0 deg
END

Basis set: Polyad scheme with $P = 2(v_1 + v_2) + v_3 \leq 40$ .

Spectroscopic Model OYT4

This model was used to produce the OYT4 line lists for KOH and NaOH [21OwTeYu].

PEF type (POT_TYPE): poten_xyz_tyuterev.

Potential expansion order: ab initio; expansion order = 8.

Dipole moment surface expansion: TYPE ` DIPOLE_PQR_XYZ`` with parameters from ab initio calculations.

A sample input file can be found at KOH_OYT4_model_TROVE.inp, which uses a different coordinate type from the model used for OYT4,

OCS

TBP

Ammonia, NH₃

Ammonia is intrinsically a non-rigid system with a low barrier to the planarity and spectroscopically non-negligible tunneling splitting of about 0.78 cm ^-1. Therefore it must be treated using the non-rigid frame and an associated $D_{3h}$ (M) group symmetry.

Molecular type (MOLTYPE): XY3.

Symmetry: $D_{3h}$ (M)

Coordinates: linearised (Linear).

Coordinates type (TRANSFORM): r-s-delta. It is based on seven internal coordinates defined using the following Z-matrix:

ZMAT
    N   0  0  0  0  14.00307401
    H1  1  0  0  0   1.00782503223
    H2  1  2  0  0   1.00782503223
    H3  1  2  3  1   1.00782503223
end

As usual, it defines three stretching coordinates $r_{{\rm NH}_1}$ , $r_{{\rm NH}_2}$ and $r_{{\rm NH}_3}$ . For the angles, note that atom 4 has the “dihedral” type 1. For this type, TROVE introduced four angles (one of which is redundant): the first two angles are valence between atoms H2 and H1 ( $\alpha_3$ ), H3 and H1 ( $\alpha_2$ ). Angle 3 is also valence, between H3 and H2 ( $\alpha_1$ ). Angle 4 is dihedral between two planes: $\vec{r}_3\times \vec{r}_1$ and $\vec{r}_1\times \vec{r}_2$ . These 4 angles are then used to construct two degenerate non-redundant bending coordinates:

$\begin{split} S_a &= \frac{1}{6} (2\alpha_1-\alpha_2-\alpha_3) \\ S_b &= \frac{1}{2} (\alpha_2-\alpha_3) \end{split}$

The last coordinates is an angle $\delta$ between the trisector and any of the bond vectors.

The valence coordinates are then used to define 5 linearised coordinates:

$\begin{split} \xi_1^{\rm lin} &= r_1^{\rm lin}-r_{\rm e} \\ \xi_2^{\rm lin} &= r_2^{\rm lin}-r_{\rm e} \\ \xi_3^{\rm lin} &= r_3^{\rm lin}-r_{\rm e} \\ \xi_4^{\rm lin} &= S_a^{\rm lin} \\ \xi_5^{\rm lin} &= S_b^{\rm lin} \\ \end{split}$

while the sixth coordinate is curvilinear $\xi_6 = \delta$ .

The Equilibrium block in the case of 7 coordinates is given by 7 equilibrium values:

EQUILIBRIUM
re          0       1.0116
re          0       1.0116
re          0       1.0116
alphae      0      106.719 deg
alphae      0      106.719 deg
alphae      0      106.719 deg
taue        0      0.385722379
end

This seven internal coordinates scheme provide a better numerical stability.

Kinetic energy operator

KEO: non-exact, constructed using the Sorensen procedure as an expansion about the non-rigid reference frame.

Frame: Non-rigid, Eckart conditions, follows the umbrella motion for a rigid stretches and equal angles.

Coordinate to expand kinetic energy: $g_n = \xi_n (n=1-6)$

Kinetic energy expansion order: 6

Primitive basis set: Numerov generated for coordinates $\xi_1$ , $\xi_2$ , $\xi_3$ and $\delta`m while for :math:$ xi_4` and $\xi_5$ , the Harmonic oscillator basis gives more stable symmetry adaptation:

BASIS
 0,'JKtau', Jrot 0
 1,'numerov','linear', 'morse',  range 0, 8, r 8, resc 4.0, points 2000, borders -0.4,2.0
 1,'numerov','linear', 'morse',  range 0, 8, r 8, resc 4.0, points 2000, borders -0.4,2.0
 1,'numerov','linear', 'morse',  range 0, 8, r 8, resc 4.0, points 2000, borders -0.4,2.0
 2,'harmonic','linear', 'linear', range 0,34, r 2, resc 2.0, points 9000, borders -1.90,1.91
 2,'harmonic','linear', 'linear', range 0,34, r 2, resc 2.0, points 9000, borders -1.90,1.92
 3,'numerov','linear', 'linear', range 0,34, r 8, resc 1.0, points 1000, borders -55.0, 55.0 deg
END

Spectroscopic Model BYTe

Potential expansion order: 8 using the PEF poten_xy3_morbid_10.

Coordinates to expand Potential energy: Morse for stretching coordinates, angles themselves for bends.

Basis set: Polyad scheme with $P = 2(v_1 + v_2 + v_3) + v_4 + v_5 + \frac{v_6}{2} \leq 14$ .

Potential energy function: Refinement of published potential [09YuBaYa].

Dipole moment surface expansion: DMF XY3_SYMMB. For the BYTe line list, an ab initio DMS was computed at the CCSD(T)/aug-cc-pVQZ level of theory [09YuBaYa].

Results: Hot line list called BYTe. BYTe is applicable for temperatures up to 1500 K. It comprises of 1138 323 351 transitions in the frequency range from 0 to 12 000 wavenumbers, constructed from 1373 897 energy levels below 18 000 wavenumbers having J values $\le$ 36.

Note

Apart from BYTe, ammonia was used to develop TROVE itself, specifically for the J=0 contraction and refinement methods. The BYTe line list remains important for astronomical applications but will also soon be joined by an even more accurate line list from the work of Coles et al. [10CoYuTe].

Reference: [09YuBaYa], [11YuBaTe], [10CoYuTe].

For BYTe, a sample input file can be found at exomol.com, see BYTe spectroscopic model.

Spectroscopic model CoYuTe

Potential energy function: general as defined in a stand-alone pot-user module pot_NH3_Roman.f90. PEF was expanded to the 8th order using the internal linearised coordinates.

Basis set: Polyad scheme with $P = 4(v_1 + v_2 + v_3) + 2(v_4 + v_5) + v_6 \leq 32$ .

Dipole moment surface expansion: Same in BYTe.

A sample input file defining the spectroscopic model can be found at CoYuTe spectroscopic model.

Methyl cation, CH₃⁺

Symmetry: $D_{3h}$

Coordinates: Linearized coordinates. $\xi_k = r_k^l - r_e$ $k = 1,2,3$ for vibrational coordinates, two symmetrized bending variables $\xi_4 = S_{4a} = \frac{1}{\sqrt{6}} (2 \alpha_1^l - \alpha_2^l - \alpha_3^l)$ and $\xi_5 = S_{4b} = \frac{1}{\sqrt{2}}(\alpha_2^l - \alpha_3^l)$ and an out of plane vibration coordinate $\xi_6 = \rho = \frac{\mathbf{r_1} \cdot (\mathbf{r_2} \times \mathbf{r_3} )} {r_{1}r_{2}r_{3}}$ . See paper for details.

Coordinate to expand kinetic energy: $g_n = \xi_n (n=1-6)$

Coordinates to expand Potential energy: $f_n = 1 - \exp(-a(\xi_n))$ $(n = 1, 3)$ for stretching coordinates, $f_4 = S_{4a}$ , $f_5 = S_{4b}$ for two bending modes and $f_6 = \rho$ .

Primitive basis set: Numerov generated for all coordinates.

Kinetic energy expansion order: 6

Potential expansion order: 6

Polyad scheme: $P = 1.5(v_1 + v_2 + v_3) + v_4 + v_5 + v_6 \leq 18$

Potential energy function: Published potential.

Dipole moment surface expansion: N/A

Results: $J = 0$ vibrational energy levels up to 6000 cm^-1.

Note

This was also used as a test example in the original TROVE paper. The coordinate scheme employed is similar to that for Ammonia (see below).

Reference: [TROVE]

Phosphine, PH₃ (rigid)

We consider phosphine as a rigid molecule with the tunneling splitting ignored.

Symmetry: $C_{3v}$

Coordinates type: R-ALPHA with the three stretching and three inter-bond bending coordinates.

Primitive basis set: Numerov generated for all coordinates.

Polyad scheme: $P = 2(s_1 + s_2 + s_3) + b_1 + b_2 + b_3 \leq 16$ plus some additions, see paper.

Z-matrix

The internal valence coordinates (required in construction of the linearised ones) are defined using the following Z-matrix:

ZMAT
    P   0  0  0  0   30.9737620
    H1  1  0  0  0   1.00782505
    H2  1  2  0  0   1.00782505
    H3  1  2  3  0   1.00782505
end

Here, atom 4 has the “dihedral” type 0, which is used for the interbond angles. In this case, the first two angles are between atoms H2 and H1 ( $\alpha_3$ ), H3 and H1 ( $\alpha_2$ ) and the last angle is defined also as an interbond angle between H3 and H2 ( $\alpha_1$ ).

Kinetic energy operator

Frame: rigid with Eckart

KEO: non-exact based on linearised coordinates

Kinetic energy expansion order: 6

Potential energy function

PEF type (POT_TYPE): poten_xy3_morbid_10.

Potential expansion order: 8.

Potential energy function: CCSD(T)/aug-cc-pV(Q+d)Z) ab initio energies fitted to polynomial expansion and refined to the HITRAN energies up to $J = 4$ .

Dipole moment function

Dipole type (DMS_TYPE): XY3_MB

Dipole moment surface expansion: CCSD(T)/aug-cc-pVTZ ab initio dipole data fitted to polynomial expansion.

Result

Line list: SAlTY, complete for up to 1500 K. All states up to 18000 cm^-1 included, up to $J = 46$

A sample input file can be found at exomol.com, see SAlTY spectroscopic model.

References: [13SoYuTe], [15SoAlTe].

Phosphine, PH₃ (non-rigid)

For PH₃, tunneling splitting via the umbrella motion may exist (as for NH₃) may exist but has yet to be detected [16SoYuTe]. In order to treat phosphine as a non-rigid, the same setup as for NH₃ can used with the symmetry group $D_{3h}$ (M).

KEO: non-exact, constructed using the Sorensen procedure as an expansion about the non-rigid reference frame.

Molecular type (MOLTYPE): XY3.

Symmetry: $D_{3h}$ (M)

Frame: Non-rigid, Eckart conditions, follows the umbrella motion for a rigid stretches and equal angles.

Coordinates type (TRANSFORM): r-s-delta.

Primitive basis set: Numerov generated for the stretched and the umbrella mode and the Harmonic basis for the two degenerate dihedral coordinates:

BASIS
  0,'JKtau', Jrot 0
  1,'numerov' ,'linear', 'morse',  range 0, 7, r 8, resc 8.0, points 2000, borders -0.5,1.70
  1,'numerov' ,'linear', 'morse',  range 0, 7, r 8, resc 8.0, points 2000, borders -0.5,1.70
  1,'numerov' ,'linear', 'morse',  range 0, 7, r 8, resc 8.0, points 2000, borders -0.5,1.70
  2,'harmonic','linear', 'linear', range 0,24, r 2, resc 4.0, points 12000, borders -3.00,3.01
  2,'harmonic','linear', 'linear', range 0,24, r 2, resc 4.0, points 12000, borders -3.00,3.02
  3,'numerov' ,'linear', 'linear', range 0,90, r 8, resc 0.6, points 10000, borders -80.0, 80.0 deg, period -2
END

Here, the numerical grid of the umbrella mode ranges from negative to positive angles with a planer structure in the middle. The card period -2 helps to build a symmetry adapted tunneling basis containing both the symmetric and asymmetric wavefunctions with a relatively large numerical grid of 5000 points.

As in the case of Ammonia, the transform type r-s-delta uses internally seven coordinates, $r_1$ , $r_2$ , $r_3$ , $\alpha_1$ , $\alpha_2$ , $\alpha_3$ , and the umbrella coordinate $\tau$ . Accordingly, the Equilibrium requires seven values for the corresponding equilibrium values:

EQUILIBRIUM
re          1       1.41182210
re          1       1.41182210
re          1       1.41182210
alphae      0      93.3685 deg
alphae      0      93.3685 deg
alphae      0      93.3685 deg
taue        0      0.573251573522
end

Sulfur trioxide, SO₃

The model is essentially the same as used for Ammonia (see above) and described in [13UnTeYu] and [16UnTeYu].

Symmetry: $D_{3h}$ (M).

Kinetic energy expansion order: 6

Coordinates type: r-s-delta

PEF: A refined PES of type poten_xy3_morbid_10.

Potential expansion order: 8

Polyad scheme: $P = 2(n_1 + n_2 + n_3) + n_4 + n_5 + \frac{n_6}{2} \leq 18$ .

Potential energy function: CCSD(T)-F12b/aug-cc-pVTZ-F12 + scalar relativistic corrections and DBOCs ab initio energies fitted to polynomial expansion of symmetrised coordinates. Refined using $J \leq 5$ experimental energies.

Dipole moment surface expansion: The same type as for Ammonia (XY3_SYMMB) based on ab initio calculations at the same levels as for PES. Fitted using the SMB representation.

Results: Linelist complete up to 5000 cm^-1 for temperatures up to 800 K.

Note

As SO₃ has a large moment of inertia, many $J$ s need to be included. Up to $J = 130$ was included for a complete linelist at 800 K. For calculating $J$ this large, special procedures were used as discussed in the paper.

An example of the TROVE input file for the SO₃ calculations using the UYT2 model can be found at UYT2 spectroscopic model.

References: [13UnTeYu], [16UnTeYu].

Methane, CH₄

Spectroscopic Model 10to10

The model is described in [14YuJe].

KEO: non-exact, expanded in terms of linearised coordinates around a rigid reference geometry

REFER-CONF RIGID

Symmetry: ${T}_d$

Frame: Eckart.

Coordinates: Type R-SYM, linearised coordinates obtained from the following valence coordinates:

$\begin{split} \xi_i &= (r_i - r_e) \exp(-\beta(r_i - r_e)^2), i = 1,4 \\ \xi_5 &= \frac{1}{12}(2\alpha_{12} - \alpha_{13} - \alpha_{14} - \alpha_{23} - \alpha_{24} + 2\alpha_{34}), \\ \xi_6 &= \frac{1}{2}(\alpha_{13} - \alpha_{14} - \alpha_{24} + \alpha_{24}), \\ \xi_7 &= \frac{1}{\sqrt{2}}(\alpha_{24} - \alpha_{23}),\\ \xi_8 &= \frac{1}{\sqrt{2}}(\alpha_{23} - \alpha_{14}), \\ \xi_9 &= \frac{1}{\sqrt{2}}(\alpha_{34} - \alpha_{12}). \end{split}$

where $r_i$ are the bond-lengths and $\alpha_{ij}$ are the interbond angles, also complimented by redundancy conditions (see [14YuJe]).

Coordinate to expand kinetic energy: $g_n = \xi_n (n=1-9)$ , linearised coordinates.

Coordinates to expand Potential energy: $f_n = 1 - \exp(-a(\xi_i^l))$ $(i = 1, 4)$ for stretching coordinates and $f_n = \xi_i^l$ $(i = 5, 9)$ for bending coordinates.

Primitive basis set: Numerov generated for stretching coordinates, harmonic oscillator basis for bends.

Kinetic energy expansion order: 6

PEF: type general implemented as a stand alone (pot_user) module pot_ch4.f90. Original PEF CCSD(T)-F12c/aug-cc-pVQZ-F12 + DK relativistic corrections ab initio was refined to experimental ( $J = 0, 4$ ) data from the HITRAN 2008 database.

Potential expansion order: 8

Polyad scheme: $P = 2(v_1 + v_2 + v_3 + v_4) + v_5 + v_6 + v_7 + v_8 + v_9 \leq 10$ .

DMF: type general included in the same module pot_ch4.f90. Dipole moment surface expansion: CCSD(T)-F12c/aug-cc-pVTZ-F12 ab initio points were fit using polynomial of symmetrised coordinates which is then expressed in symmetrised molecular bond (SMB) representation, see [[13YuTeBa]]_.

Results: 10to10 linelist complete for up to 1500 K. All states up to 18000 cm^-1 included, up to J = 39.

Note

This describes the 10to10 calculation which was based on a previous calculation for lower frequencies. The high symmetry of methane meant special symmetry considerations are required. Details of this are given in the papers.

Reference: [13YuTeBa], [14YuJe].

Model input files: YT10to10 spectroscopic model.

Spectroscopic Model MM

The model is described in [24YuOwTe].

KEO: Non-exact Taylor expansion around the equilibrium structure in terms of the valence (curvilinear) coordinates using the automatic differentiation (AD) technique [15YaYu] up to 6th order.

Coordinates: The choice of the valence coordinates is the same as used in 10to10, type R-SYM.

Frame: Eckart.

PEF: the same type general from the module pot_ch4.f90. A new ab initio PEF was refined to experimentally derived MARVEL energies of methane.

Potential expansion order: 8

Polyad scheme: $P = 2(v_1 + v_2 + v_3 + v_4) + v_5 + v_6 + v_7 + v_8 + v_9 \leq 14$ with caveats, see paper.

DMF: A new accurate ab initio DMS of the QZ quality.

Model input files: MM spectroscopic model.

Hydrogen peroxide, H₂O₂

The model (APTY) is described in [15AlOvYu], [16AlPoOv].

KEO: non-exact (linearised), expanded around a non-rigid reference configuration constructed to follow the torsion motion with all other valence coordinates fixed to their equilibrium values. Symmetry: $D_{2h}$ (EM).

Frame: Eckart-Saywitz conditions with the x-axis in the plane bisecting the HOOH book-angle. The integration range for the torsional coordinate is extended to $2\pi$ in order to efficiently separate the torsional and rotational degrees of freedom.

Coordinates: type (transform) r-alpha-tau. These are linearised except the torsional mode, based on the following valence-type coordinates, $\xi_i = (x_i^l - x_i^e)$ where $i = 1, 6$ are $R$ , $r_1$ , $r_2$ , $\theta_1$ , $\theta _2$ and $\tau$ .

Molecular type (MOLTYPE): ABCD. This means that the coordinates, their symmetry properties and frame are defined in the module mol-ABCD.f90.

Coordinate to expand kinetic energy: $g_n = \xi_n (n=1-6)$ , linearised coordinates

Coordinates to expand Potential energy: $f_n = 1 - \exp(-a_i(\xi_i^l))$ $(i = 1, 3)$ for stretches and $f_n = \xi_i^l$ $(i = 4, 6)$ for bending coordinates.

Potential linearised expansion order: 8

Primitive basis set: Numerov generated for all coordinates.

Kinetic energy expansion order: 6

PEF: One of the integrated functional forms into the main, default TROVE compilation, type POTEN_H2O2_KOPUT_UNIQUE.

POT_TYPE  POTEN_H2O2_KOPUT_UNIQUE

The PEF used was obtained by refining an ab initio CCSD(T)-F12b/aug-cc-pVNZ PES of HOOH to experimental ro-vibrational energies of the main isotopologue of HOOH , for $J \leq 4$ .

Basis set: Constructed using the polyad scheme: $P = 4n_1 + 8(n_2 + n_3 + n_4 + n_5) +n_6 \leq 42$ .

DMF type (DMS_TYPE): HOOH_MB. This dipole moment surface was computed using CCSD(T)-F12b/aug-cc-pV(T+d)Z and fitted to a polynomial.

Results: Linelist complete up to 6000 cm^-1. Extended linelist up to 8000 cm^-1 with reduced completeness at high temperatures.

Note

The $\tau$ coordinate for this molecule adds complications to expansion of dipole, etc. In order to guarantee a smooth torsional behaviour of all expansion terms of PEF and DMF, the iron-out feature was used. The iron-out card is placed anywhere of the main body of the input file (step 1) outside of any sections.

See papers for details.

Examples of the TROVE input file for the HOOH calculations using the APTY model can be found at APTY spectroscopic model.

Reference: [15AlOvYu], [16AlPoOv].

Formaldehyde, H₂CO

Symmetry: $C_{2v}$

Coordinates: $\xi_i = (x_i^l - x_i^e)$ where $i = 1, 6$ are $r_1^l$ , $r_2^l$ , $r_3^l$ , $\theta_1^l$ , $\theta_2^l$ and $\tau$ .

Coordinate to expand kinetic energy: $g_n = \xi_n$ , linearised.

Coordinates type (transform): R-THETA-TAU

Coordinates to expand Potential energy: $f_n = 1 - \exp(-a_i(\xi_i^l))$ $(i = 1, 3)$ for stretches, $f_n = xi_i$ $(i = 4, 6)$ for bends.

Primitive basis set: Numerov generated for all coordinates.

Kinetic energy expansion order: 6

Potential expansion order: 8

Polyad scheme: $P = 2(n_2 + n_3) + n_1 + n_4 + n_5 \leq 16$ plus some additions, see paper.

Potential energy function: CCSD(T)/aug-cc-pVQZ) ab initio energies fitted to polynomial expansion. Refined using HITRAN data up to $J = 5$ .

Dipole moment surface expansion: CCSD(T)/aug-cc-pVQZ ab initio dipole data fitted to polynomial expansion.

Results: Linelist for temperatures up to 1500 K for transitions up to 10,000 cm^-1 and $J = 70$ .

Reference: [15AlOvPo].

H₂CS

TBP

Silane, SiH₄

Symmetry: $T_d$

Coordinates: Linearised coordinates. As for methane.

Coordinate to expand kinetic energy: As for methane but with curvilinear coordinates.

Coordinates to expand Potential energy: As for methane.

Primitive basis set: Numerov generated for all coordinates.

Kinetic energy expansion order: 6

Potential expansion order: 8

Polyad scheme: $P = 2(n_1 + n_2 n_3 + n_4) + n_5 + n_6 + n_7 + n_8 + n_9 \leq 12$ plus some additions, see paper.

Potential energy function: CBS-F12 PES including extensive corrections, see paper. Fitted to polynomial expansion. Refined using 1452 experimental energies up to $J = 6$ .

Dipole moment surface expansion: CCSD(T)/aug-cc-pVT(+d for Si)Z ab initio dipole data fitted to polynomial expansion.

Results: Linelist for temperatures up to 1200 K for transitions up to 5000 cm^-1 and $J = 42$ .

Reference: [17OwYuYa].

Methyl chloride, CH₃Cl

Symmetry: $C_{3v}$

Coordinates: $\xi_k = r_k^l - r_e$ $k = 1,2,3,4$ for vibrational coordinates, $\xi_i = \beta_i - \beta_e$ , $i = 5,6,7$ for bending coordinates, $\xi_8 = \frac{1}{\sqrt{6}} (2 \tau_{23} - \tau_{13} - \tau_{12})$ and $\xi_9 = \frac{1}{2}(\tau_{13} - \tau_{12})$ .

Coordinate to expand kinetic energy: $g_n = \xi_n$ , curvilinear coordinates used.

Coordinates to expand Potential energy: $f_n = 1 - \exp(-a_i(\xi_i^l))$ $(i = 1, 4)$ for stretches and $f_n = \xi_i^l$ $(i = 4, 9)$ for bending coordinates.

Primitive basis set: Numerov generated for all coordinates.

Kinetic energy expansion order: 6

Potential expansion order: 8

Polyad scheme: $P = n_1 + 2(n_2 + n_3 + n_4) + n_5 + n_6 + n_7 + n_8 + n_9 \leq 14$ plus some additions, see paper.

Potential energy function: CBS-F12 PES including extensive corrections, see paper. Fitted to polynomial form.

Dipole moment surface expansion: CCSD(T)/aug-cc-pVQZ(+d for Cl) level of theory. Fitted to polynomial form.

Results: Line list applicable up to 1200 K.

Note

Data for ³⁵Cl and ³⁷Cl isotopologues.

Reference: [15OwYuTa], [18OwYaTe] .

Ethylene, C₂H₄

Symmetry: $D_2h$

Coordinates: $\xi_n = r_i-r_e$ $i=1,5$ for stretches, $\xi_n = \theta_i - \theta_e$ $i = 1, 4$ for bends, $\xi_10 = \pi - \beta_1$ , $\xi_11 = \beta_2 - \pi$ for two $\beta$ H-C-H ‘book type’ angles and $\xi_12 = 2 \tau - \beta_1 + \beta_2$ where $\tau$ is H-C-C-H dihedral angle.

Coordinate to expand kinetic energy: $g_n = \xi_n$ . Curvilinear coordinates.

Coordinates to expand Potential energy: Morse coordinates for stretches, other coordinates expanded as $\xi$ themselves.

Primitive basis set: Numerov generated for all coordinates.

Kinetic energy expansion order: 6

Potential expansion order: 8

Polyad scheme: $P = n_1 + 2(n_2 + n_3 + n_4 + n_5) + n_6 + n_7 + n_8 + n_9 + n_{10} + n_{11} + n_{12} \leq 10$ plus additions, see paper.

Potential energy function: ab initio PES calculated at CCSD(T)-F12b/cc-pVTZ-F12 level of theory. Fit to polynomial form. Refined PES using HITRAN data for $J=1-4$ and other sources for vibrational band centres.

Dipole moment surface expansion: DMS calculated at CCSD(T)-F12b/aug-cc-pVTZ level of theory and fit to polynomial form with appropriate axis system.

Results: Line list for 0-7000 cm^-1 up to $J=78$ . Applicable up to 700 K.

Note

Largest molecule in TROVE so far. Special techniques developed to cope with such a large molecule.

Reference: [18MaYaTe].

Phosphorus trifluoride, PF₃

Symmetry: $C_{3v}$

Coordinates: $\xi_n = r_i - r_e$ $i=1,3$ for stretching coordinates and $\xi_n = \alpha_i - \alpha_e$ $i=1,3$ for bends.

Coordinate to expand kinetic energy: $g_n = \xi_n$ . Linearised expansion.

Coordinates to expand Potential energy: Morse coordinates for stretches, bends expanded as $\xi$ themselves.

Primitive basis set: Numerov generated for all coordinates.

Kinetic energy expansion order: 6

Potential expansion order: 8

Polyad scheme: $P = 2(n_1 + n_2 + n_3) + n_4 + n_5 + n_6 \leq 14$ .

Potential energy function: ab initio PES calculated at CCSD(T)-F12b/cc-pVTZ-f12 level of theory fitted using polynomial expansion of symmetrized coordinates.

Dipole moment surface expansion: CCSD(T)/aug-cc-pVTZ ab initio dipole data fitted to polynomial expansion.

Results: Room temperature line list for up to $J = 60$ .

Note

The room temperature line list for this molecule is not complete but could be easily extended using the methods applied

to SO₃ and C₂H₄.

Reference: [19MaChYa].

Molecules

Hydrogen sulfide, SiH2

CO2

Kinetic energy operator

Spectroscopic Model UCL-4000

Non-symmetric isotopologue 18CO16

Kinetic energy operator

Spectroscopic Model UCL-4000

KOH

Kinetic energy operator

Spectroscopic Model OYT4

OCS

Ammonia, NH3

Kinetic energy operator

Spectroscopic Model BYTe

Spectroscopic model CoYuTe

Methyl cation, CH3+

Phosphine, PH3 (rigid)

Z-matrix

Kinetic energy operator

Potential energy function

Dipole moment function

Result

Phosphine, PH3 (non-rigid)

Sulfur trioxide, SO3

Methane, CH4

Spectroscopic Model 10to10

Spectroscopic Model MM

Hydrogen peroxide, H2O2

Formaldehyde, H2CO

H2CS

Silane, SiH4

Methyl chloride, CH3Cl

Ethylene, C2H4

Phosphorus trifluoride, PF3

Hydrogen sulfide, SiH₂

CO₂

Non-symmetric isotopologue ¹⁸CO¹⁶

Ammonia, NH₃

Methyl cation, CH₃⁺

Phosphine, PH₃ (rigid)

Phosphine, PH₃ (non-rigid)

Sulfur trioxide, SO₃

Methane, CH₄

Hydrogen peroxide, H₂O₂

Formaldehyde, H₂CO

H₂CS

Silane, SiH₄

Methyl chloride, CH₃Cl

Ethylene, C₂H₄

Phosphorus trifluoride, PF₃
